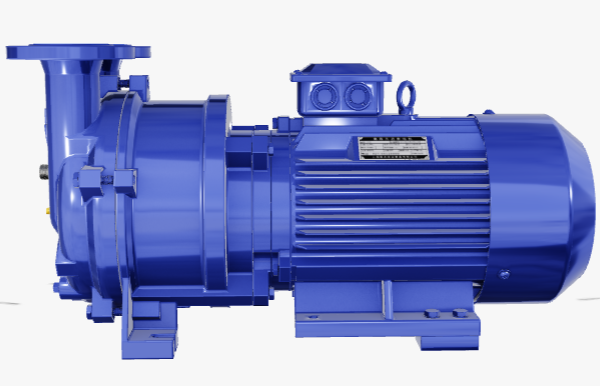

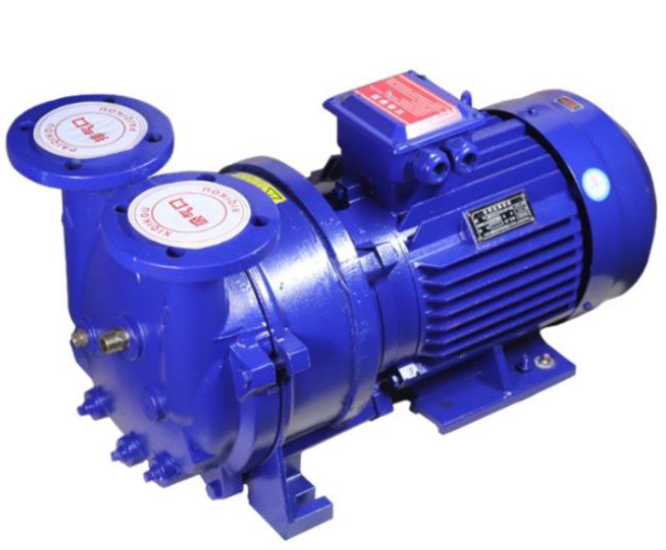

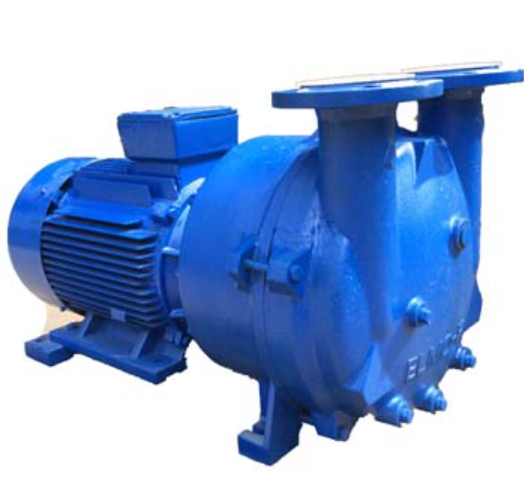

2BV series vacuum pumps

The 2BV series vacuum pumps are suitable for extracting gases and water vapor, with an suction pressure reaching 33mbar absolute pressure (97% vacuum degree). When the vacuum pump operates for a long time under a suction pressure lower than 80mbar, a cavitation protection pipe should be connected to protect the pump. If equipped with an atmospheric ejector, the suction pressure can reach 10mbar, and the ejector can be directly installed on the vacuum pump. When used as a compressor, its pressure can be as high as 0.26MPa (absolute pressure).

2BV Series Vacuum Pumps Features

The motor and pump are directly coupled on the same axis, which saves space and is easy to install.

Mechanical seals are adopted as the standard configuration, eliminating leakage and facilitating maintenance.

This vacuum pump operates smoothly with low noise.

The uniform corrosion-resistant design features a bronze impeller that enhances the pump's corrosion resistance, while the stainless steel material is more suitable for more demanding applications.

The unique flexible exhaust port design prevents over-compression, ensuring high efficiency of the SKA within its performance range.

2BV series vacuum pumps Application

It is widely used in fields such as petrochemicals, pharmaceuticals, food, and sugar industries. Due to the isothermal compression process of the gas during operation, it is less likely to cause danger when compressing and suctioning flammable and explosive gases, making its application even more extensive.
