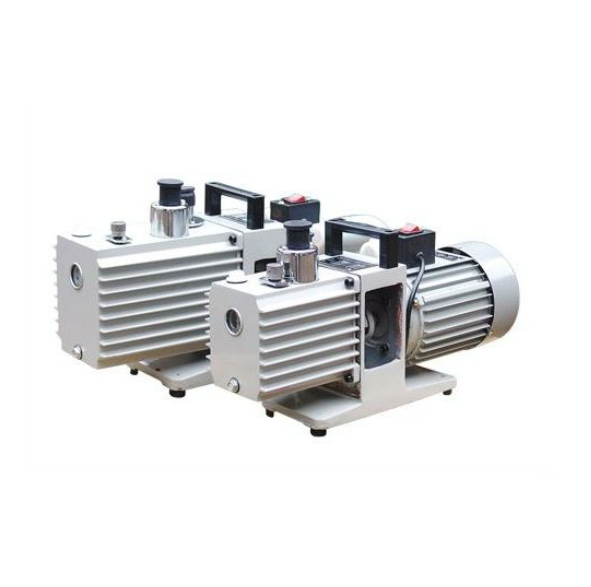

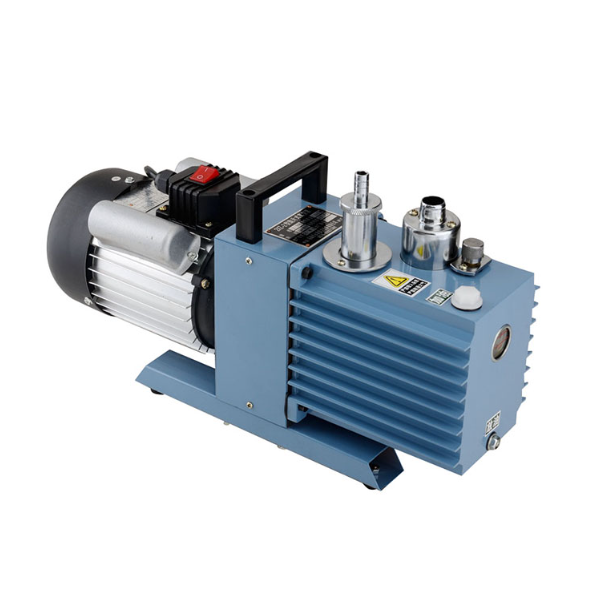

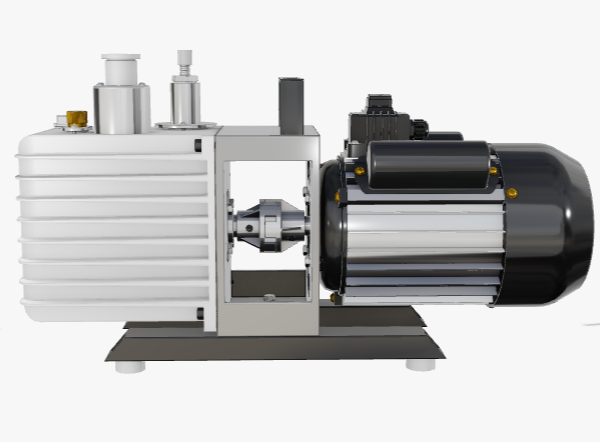

2XZ series vacuum pumps
| Place of Origin | China |
|---|---|
| Certification | ISO9001,CE |
| Model Number | 2XZ |
| Minimum Order Quantity | 1 |
| Price | Based on the price of the day |
| Packaging Details | Wooden packing |
| Delivery Time | Based on the product |
| Payment Terms | L/C, L/C, T/T |
| Supply Ability | Spot adequacy |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Flow Rate (L/s) | 15 | Ultimate Pressure(≦pa) | 6×10-2 |
|---|---|---|---|
| Rotational Speed(r/min) | 1400 | Motor Power (kW) | 1.5 |
| Voltage (V) | 380V |
Product Description
The 2XZ series vacuum pumps are of a two-stage direct-coupled structure. Direct-coupled vacuum pumps are one of the basic equipment used to extract gas from sealed containers. It can be used independently or as a pre-pump for booster pumps, diffusion pumps, molecular pumps, etc., a maintenance pump, or a pre-pump for titanium pumps.
Its working performance is composed of two parts: the high-pressure stage and the low-pressure stage. Its suction port is connected to the vacuum equipment. During operation, it sucks in and discharges a large amount of gas in the container. When the equipment achieves vacuum, the exhaust valve of the high-pressure stage closes, and the gas at the inlet of the high-pressure stage will be transferred to the second stage and sucked in and discharged through the second stage. The vacuum equipment can obtain a certain vacuum. This pump has a high rotational speed and a small appearance. Compact structure and convenient for fluid operation.
2XZ Series Vacuum Pumps Features
It is small in size, light in weight and low in noise.
It can operate continuously for a long time within the ambient temperature range of 5℃ to 40℃ and under the condition that the inlet pressure is less than 1.3 × 10³ Pascals.
It is equipped with a gas ballast valve, which can remove a small amount of water vapor.
It is equipped with an automatic anti-oil return double safety device (except for 380V).
2XZ series vacuum pumps Application
It can be used in the manufacturing of electric vacuum devices, thermos flasks, vacuum welding, printing, vacuum forming, refrigeration equipment repair and instrument and meter matching, etc.
Laboratories and testing rooms in professional units and departments such as aerospace, semiconductors, coating, food packaging, drying, refrigeration, scientific research, medical care, electronics, chemical engineering, and pharmaceuticals, as well as colleges and universities.
The pump is not suitable for extracting gases that are corrosive to metals, react chemically with the pump oil, contain particles and dust, have excessive oxygen content, are explosive or toxic.
