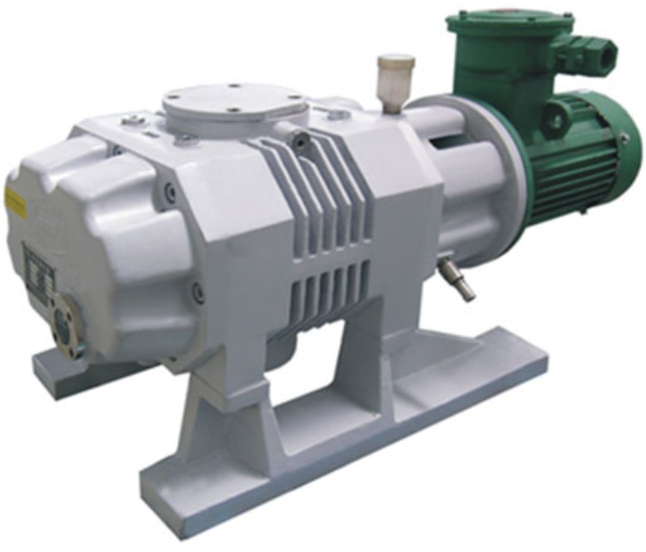

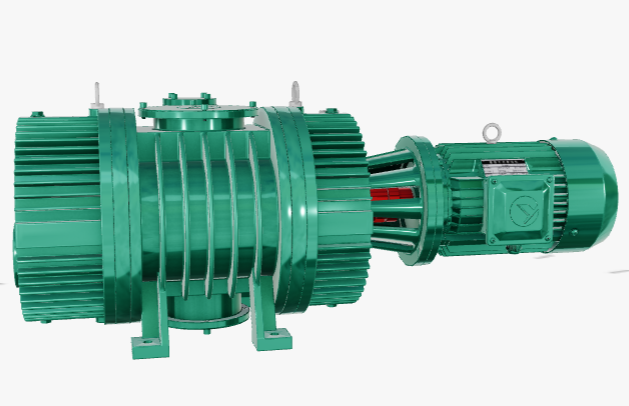

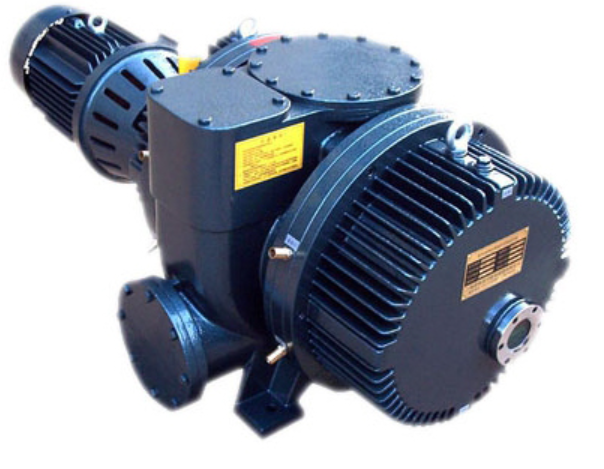

ZJY series Roots vacuum pumps

Place of Origin China
Certification ISO9001,CE
Model Number ZJY
Minimum Order Quantity 1
Price Based on the price of the day
Packaging Details Wooden packing
Delivery Time Based on the product
Payment Terms L/C, L/C, T/T
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pumping Rate(L/s) 4000 Ultimate Pressure(≦pa) 5×10-2
Alve-controlled Differential Pressure(Pa) 2700 Air Inlet(mm) 400
Exhaust Port (mm) 320 Rotational Speed (r/min) 2900
Leave a Message
Product Description

ZJY series Roots vacuum pump is a positive displacement vacuum pump. The ZJY type Roots vacuum pump with an overflow valve is a derivative product of the ZJ Roots vacuum pump. Its working principle is the same as that of the ZJ type Roots vacuum pump. It uses two figure-eight rotors to rotate synchronously inside the pump casing to draw in and exhaust air. This series of Roots pumps can be used as booster pumps, but they cannot directly discharge gas into the atmosphere.



ZJY Series Roots Vacuum Pumps Features



Small size, high pumping speed, and low operating noise.



It is particularly suitable for vacuum systems that require high pumping speed under low inlet pressure.



There is no direct contact between the high-speed rotating rotors or between the rotors and the pump body, and a certain gap is maintained between all moving parts.



An internal relief valve is set up, which enables the Roots vacuum pump and the forepump to operate pneumatically almost simultaneously under atmospheric conditions, thereby shortening the pumping time.



ZJY series Roots vacuum pumps Application



Air extraction for large-scale test wind tunnels and exhaust for lighting fixture production lines.



Vacuum drying, vacuum impregnation treatment, vacuum heat treatment, vacuum smelting exhaust and pre-pumping of vacuum coating equipment for power transformers, power capacitors and power mutual inductors.



By choosing the appropriate forepump, Roots pumps can also be widely applied in vacuum distillation, concentration, drying and other processes in industries such as food, chemical engineering, medicine and light textile.
