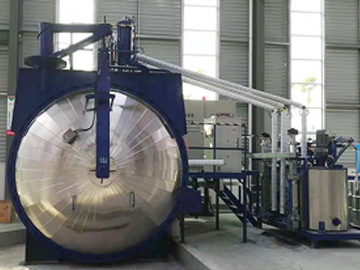

Static mixing vacuum pressure casting equipment for epoxy resin
| Place of Origin | China |
|---|---|
| Brand Name | FULITE |
| Certification | ISO9001,CE |
| Minimum Order Quantity | 1 |
| Price | Based on the price of the day |
| Packaging Details | Wooden packing |
| Delivery Time | Based on the product |
| Payment Terms | L/C, T/T |
| Supply Ability | Spot adequacy |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Ultimate Vacuum | ≤50Pa (unload) | Operatingpressure | ≤0.4 ≤0.4 MPa Or None |
|---|---|---|---|
| Mixing Mode | Static Mixing | Casting Mode | Auto-control By Computer |
Product Description
This device is designed for precise mixing and pouring of two-component materials such as epoxy resin, and is suitable for packaging and pouring in fields such as electronics, composite materials, and handicrafts. Its core advantages lie in:
1. Static mixing, efficient and uniform:
Using a static mixer, no mechanical stirring is required to avoid the generation of bubbles and ensure uniform material mixing.
The mixing ratio can be adjusted to meet the requirements of different material ratios.
Fast mixing speed, high efficiency, suitable for continuous production.
2. Vacuum defoaming, quality assurance:
Equipped with a vacuum system, effectively removing bubbles from the material, improving product density and performance.
The vacuum degree can be adjusted to meet the defoaming requirements of different materials.
Visualization of the defoaming process for easy monitoring.
3. Pressure casting, precise control:
Using pressure casting to ensure that the material fully fills the mold and reduces defects.
The pouring pressure and speed can be adjusted to meet the needs of different products.
Equipped with high-precision metering pumps to achieve precise quantitative pouring.
4. Automated operation, convenient and efficient:
PLC control, touch screen operation, easy parameter setting.
Equipped with automatic mixing, defoaming, and pouring functions, reducing manual intervention.
Optional automatic loading and unloading and cleaning functions can be selected to further improve efficiency.
5. Safe, reliable, and easy to maintain:
The equipment has a compact structure, stable operation, and adequate safety protection.
The key components are made of high-quality materials with strong durability.
Easy maintenance and reduced usage costs.
Product Highlights:
High precision: Ensure precise mixing ratio and pouring volume.
High efficiency: Automated operations improve production efficiency.
High quality: Vacuum defoaming ensures product performance.
Easy to operate: Humanized design, easy to operate.
Widely applicable: Suitable for pouring various epoxy resin materials.
Applicable fields:
Electronic appliances: packaging of transformers, mutual inductors, sensors, etc.
Composite materials: insulation components, gears, shaft sleeves, etc. are poured.
Craftsmanship: Production of imitation jade, imitation crystal and other handicrafts.
This equipment, with its advantages of static mixing, vacuum defoaming, pressure casting, and automation control, can efficiently and accurately complete the mixing and casting of epoxy resin materials, meeting the requirements of high-quality production.
