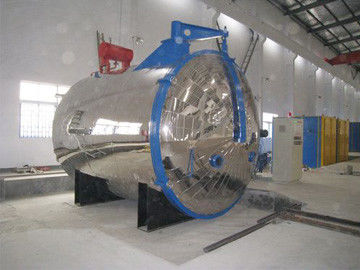

Pressure-Changed Vacuum Drying oven for dry type transformer
| Place of Origin | China |
|---|---|
| Brand Name | FULITE |
| Certification | ISO9001,CE |
| Minimum Order Quantity | 1 |
| Price | Based on the price of the day |
| Packaging Details | Wooden packing |
| Delivery Time | Based on the product |
| Payment Terms | L/C, T/T |
| Supply Ability | Spot adequacy |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Extreme Vacuum | 5 × 10 ⁻ ² Pa (high Vacuum Research Type) | Heating Rate | 15 ℃/min (quick Start Type) |
|---|---|---|---|
| Explosion Proof Grade | Ex D Ⅱ C T6 (chemical Explosion-proof Type) | Operating Temp | 115±5℃ |
Product Description
Flexible configuration:
We offer 20+professional variant models including double door anti pollution type (GMP standard), anti-corrosion titanium chamber (pH 1-14 tolerance), ultra-low temperature type (-50 ℃ pre freezing), etc.
Special Parameters:
Extreme vacuum: 5 × 10 ⁻ ² Pa (high vacuum research type)
Heating rate: 15 ℃/min (quick start type)
Multi zone temperature control: 8 independent temperature zones (specifically for composite materials)
Explosion proof grade: Ex d Ⅱ C T6 (chemical explosion-proof type)
Typical Customers:
Special demand scenarios such as semiconductor packaging adhesive drying (low stress curing), nuclear industry waste treatment (alpha level sealing), and cosmetics freeze-dried powder production (biological activity retention rate ≥ 95%).
Specification
1 Round chamber
|
mm
|
Ultimate vacuum
|
Leakage rate
|
Operating temp. | Temp. accuracy | Control mode |
| Ф2200×3000 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| Ф2400×3000 |
≤50Pa (unload) |
≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| Ф2600×3000 |
≤50Pa (unload) |
≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| Ф2800×3000 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| Ф3000×3500 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| Ф3200×3500 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| Ф3200×4000 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| Ф3600×8000 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| Ф4200×8000 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
2 , Rectangular chamber
|
Dimension mm |
Ultimate vacuum
|
Leakage rate
|
Operating temp. | Temp. accuracy |
Control mode
|
| 4000×2500×2500 | ≤50Pa (unload) | ≤500Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| 4000×3000×3000 |
≤50Pa (unload) |
≤500Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| 5000×3000×3000 |
≤10Pa ≤10Pa (unload) |
≤500Pa.L/S | 115±5℃ | ±5℃ |
Auto control by HMI |
| 5000×3000×3500 |
≤10Pa ≤10Pa (unload) |
≤500Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
