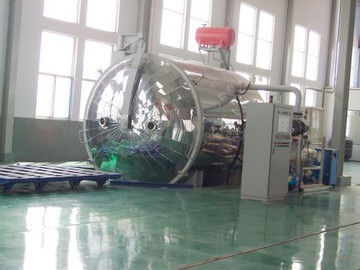

Pressure-Changed Vacuum Drying oven for dry type transformer

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMTBF | >10000 Hours | Sealing Life Of The Cavity | ≥ 500000 Times Of Opening And Closing |
---|---|---|---|
Emergency Drainage | 5-second Rapid Emptying Mechanism | Material Standard | ASME VIII Div.1 Pressure Vessel Certification |
Safety design:
Triple vacuum leak protection (accuracy 0.1Pa/s), over temperature self cutting system (millisecond response), IP65 protection level control cabinet, certified with SIL2 functional safety.
Reliability parameters:
MTBF (Mean Time Between Failures):>10000 hours
Sealing life of the cavity: ≥ 500000 times of opening and closing
Emergency drainage: 5-second rapid emptying mechanism
Material Standard: ASME VIII Div.1 Pressure Vessel Certification
High risk scenarios:
Special working conditions such as drying of solvent containing materials (real-time monitoring of LEL concentration), dust explosion environment (nitrogen inerting system), radioactive material treatment (lead shielding optional), etc.
Specification
1 Round chamber
mm
|
Ultimate vacuum
|
Leakage rate
|
Operating temp. | Temp. accuracy | Control mode |
Ф2200×3000 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
Ф2400×3000 |
≤50Pa (unload) |
≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
Ф2600×3000 |
≤50Pa (unload) |
≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
Ф2800×3000 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
Ф3000×3500 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
Ф3200×3500 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
Ф3200×4000 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
Ф3600×8000 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
Ф4200×8000 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
2 , Rectangular chamber
Dimension mm |
Ultimate vacuum
|
Leakage rate
|
Operating temp. | Temp. accuracy |
Control mode
|
4000×2500×2500 | ≤50Pa (unload) | ≤500Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
4000×3000×3000 |
≤50Pa (unload) |
≤500Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
5000×3000×3000 |
≤10Pa ≤10Pa (unload) |
≤500Pa.L/S | 115±5℃ | ±5℃ |
Auto control by HMI |
5000×3000×3500 |
≤10Pa ≤10Pa (unload) |
≤500Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
