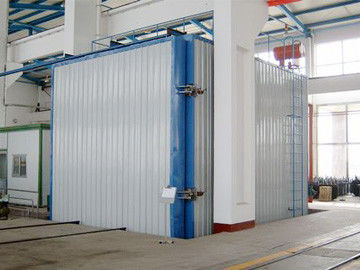

Pressure-Changed Vacuum Drying oven for dry type transformer
| Place of Origin | China |
|---|---|
| Brand Name | FULITE |
| Certification | ISO9001,CE |
| Minimum Order Quantity | 1 |
| Price | Based on the price of the day |
| Packaging Details | Wooden packing |
| Delivery Time | Based on the product |
| Payment Terms | L/C, T/T |
| Supply Ability | Spot adequacy |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cold Trap Water Capture Capacity | 10kg/h~2t/h | Steam Consumption | 0.4kg Steam/kg Water (compared To Traditional 0.8kg) |
|---|---|---|---|
| Noise Level | ≤ 65dB (A) (Silent Design) | Control Mode | Auto Control By HMI |
Product Description
Environmental advantages:
The energy saving rate of the waste heat recovery system exceeds 35%, and the closed-loop condensation device is used to achieve zero discharge of wastewater. Adopting oil-free dry pump technology reduces annual maintenance costs by 60%.
Technical Parameter:
Cold trap water capture capacity: 10kg/h~2t/h
Steam consumption: 0.4kg steam/kg water (compared to traditional 0.8kg)
Noise level: ≤ 65dB (A) (Silent design)
Carbon emission index: 0.12tCO2e/ton product (industry average 0.3t)
Applications:
Environmentally sensitive production processes such as chemical hazardous waste treatment (VOCs recovery rate>99.9%), drying of biodegradable materials (temperature resistance<100 ℃), and dehydration of lithium battery electrolyte (dew point -70 ℃).
Specification
1 Round chamber
|
mm
|
Ultimate vacuum
|
Leakage rate
|
Operating temp. | Temp. accuracy | Control mode |
| Ф2200×3000 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| Ф2400×3000 |
≤50Pa (unload) |
≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| Ф2600×3000 |
≤50Pa (unload) |
≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| Ф2800×3000 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| Ф3000×3500 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| Ф3200×3500 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| Ф3200×4000 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| Ф3600×8000 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| Ф4200×8000 | ≤50Pa (unload) | ≤100Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
2 , Rectangular chamber
|
Dimension mm |
Ultimate vacuum
|
Leakage rate
|
Operating temp. | Temp. accuracy |
Control mode
|
| 4000×2500×2500 | ≤50Pa (unload) | ≤500Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| 4000×3000×3000 |
≤50Pa (unload) |
≤500Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
| 5000×3000×3000 |
≤10Pa ≤10Pa (unload) |
≤500Pa.L/S | 115±5℃ | ±5℃ |
Auto control by HMI |
| 5000×3000×3500 |
≤10Pa ≤10Pa (unload) |
≤500Pa.L/S | 115±5℃ | ±5℃ | Auto control by HMI |
