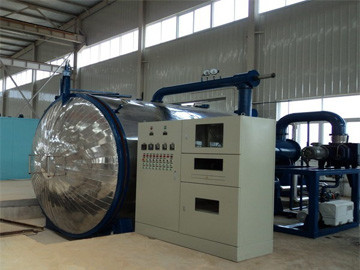

PSA law vacuum drying equipment

Core advantages:

Through intelligent pressure gradient adjustment technology, the directional migration of moisture inside the material is achieved, and the drying efficiency is increased by 40% compared to traditional vacuum drying. Adopting a modular temperature control system (with an accuracy of ± 0.5 ℃) to meet the requirements of thermosensitive materials.

Key parameter:

Vacuum degree range: 10Pa~-0.098MPa

Temperature control: 30 ℃~180 ℃ (customizable high temperature type up to 300 ℃)

Energy consumption index: ≤ 0.8kW · h/kg water evaporation capacity (industry-leading)

Volume specification: 50L~20m ³ Full range coverage

Industry Applications:

High end manufacturing scenarios in the pharmaceutical field (pre freezing of freeze-dried powder injections), drying of electrode sheets for new energy batteries (moisture content ≤ 0.3%), and synthesis of nanomaterials (anti agglomeration control) are particularly suitable for the treatment of active ingredients sensitive to crystal structure.
