3kW-36MW Vacuum Curing Oven for the transformers core drying ,impregnated coil drying,resin curing

Place of Origin China
Brand Name FULITE
Certification ISO9001,CE
Minimum Order Quantity 1
Price Based on the price of the day
Packaging Details Wooden packing
Delivery Time Based on the product
Payment Terms L/C, T/T
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Drying Temperature Range Room Temperature~200 ℃ Vacuum Degree - 0.098MPa
Heating Method Electric Heating Or Steam Heating Capacity 50L~5000L (can Be Customized According To Customer Needs)
Leave a Message
Product Description

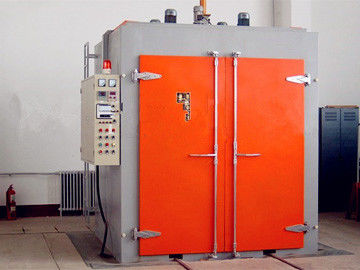

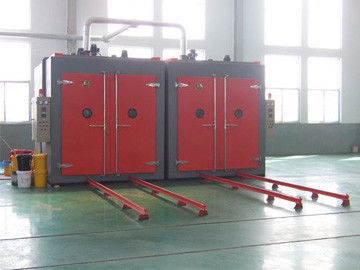

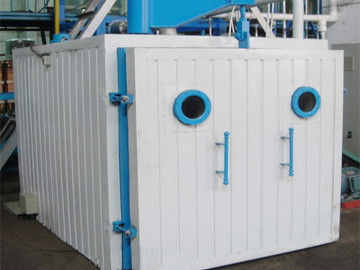

Vacuum Curing Oven for the transformers core drying

Vacuum Curing Oven for the transformers core drying is an efficient and energy-saving drying device widely used in industries such as chemical, pharmaceutical, food, and electronics. This device combines the dual advantages of hot air circulation and vacuum drying, and can quickly remove moisture or solvents from materials in low-temperature environments while maintaining the original characteristics of the materials and avoiding damage caused by high temperatures.

3kW-36MW Vacuum Curing Oven for the transformers core drying ,impregnated coil drying,resin curing 0



Advantages of hot air circulation vacuum drying equipment:



Main Standard model
Model HB-1 HB-2 HB-3 HB-4 HB-5 HB-6
Chamber size mm
(W×D×H)
1500×1600×1600 2000×2000×2000 2000×3000×2000 2000×3500×2000 2200×4000×2000 3000×5000×3000
Working temp,(℃) RT—200 RT—200 RT—200 RT—200 RT—200 RT—200
Voltage /Frequency(V/ Hz) 3—380/50 3—380/50 3—380/50 3—380/50 3—380/50 3—380/50
Heating power(kw) 27 45 54 63 72 96
Temp. Uniformity (%) ±2.5 ±2.5 ±2.5 ±2.5 ±2.5 ±2.5
Temperature fluctuation(℃) ±1 ±1 ±1 ±1 ±1 ±1
Weight (T) 2 3 4 4.5 6 8
